Category: Ceiling Mount
Name: Large Back to Back TV Ceiling ..
Date: 2016-09-06

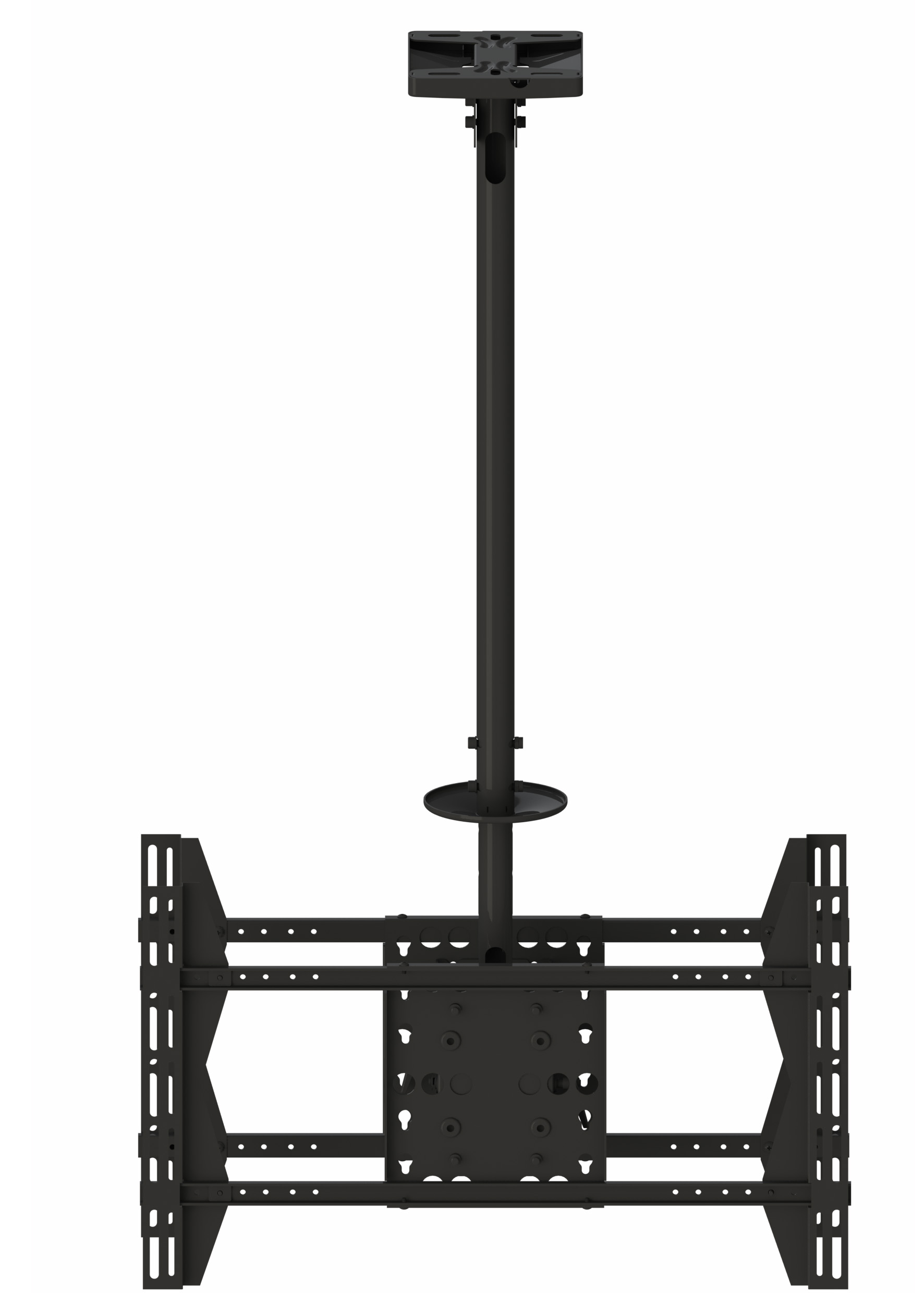

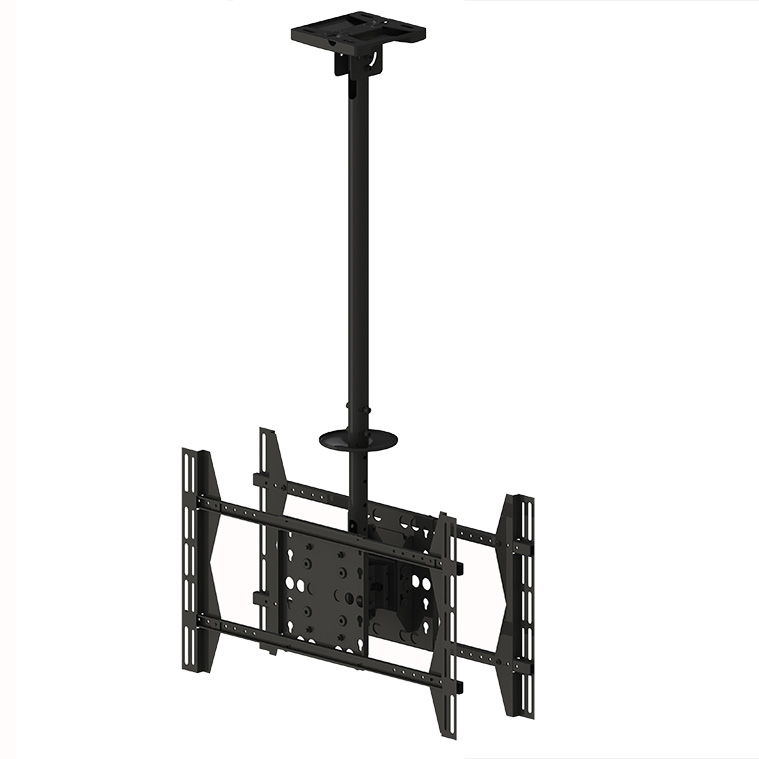

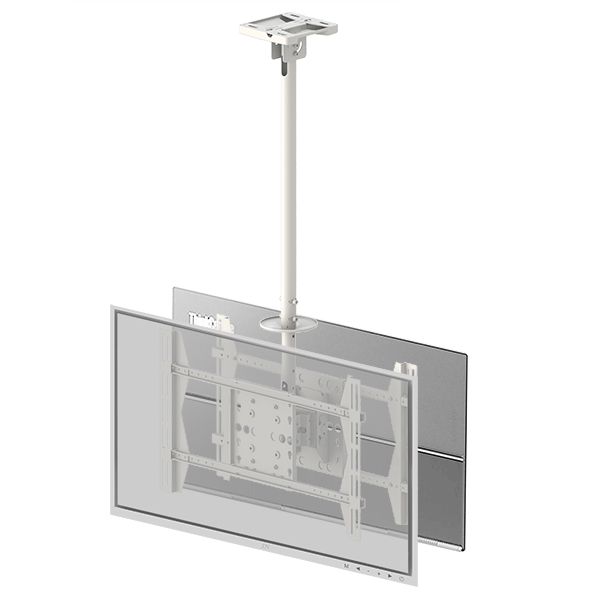

Back to Back feature allows large sized flat panels or digital signage solutions to be seen from multiple locations.
This solution is perfect to use in public installations such as stores, airports, hospitals or elsewhere where safety, stability and perfect viewing angles from multiple positions around the screens are needed.

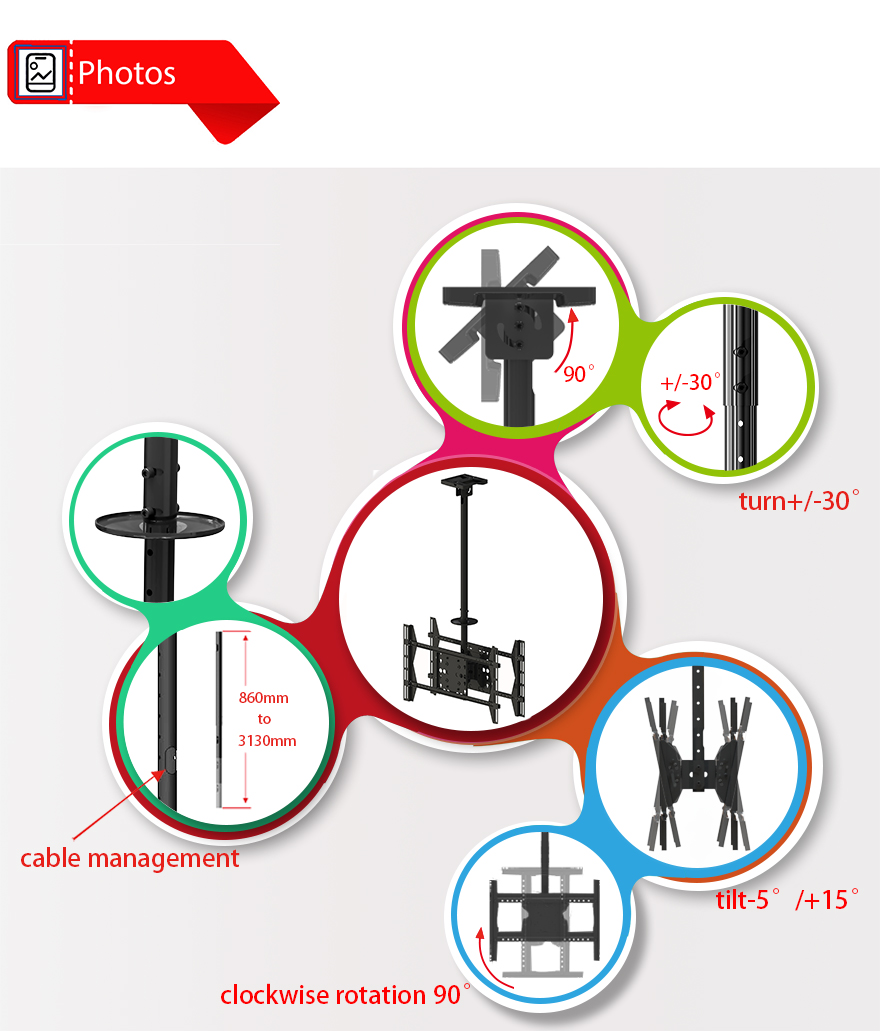

Change the screen from landscape to portrait by turning the screen without demounting it.
- Description
Hightlights
.Portrait or landscape position of screen possible by demounting.
.Variable tilt with locking pin mechanism for precise positioning.
.Integrated cable management routes cables through ceiling plate.
.Power click install for easy, fast and safe installation.
.Ceiling plate included.

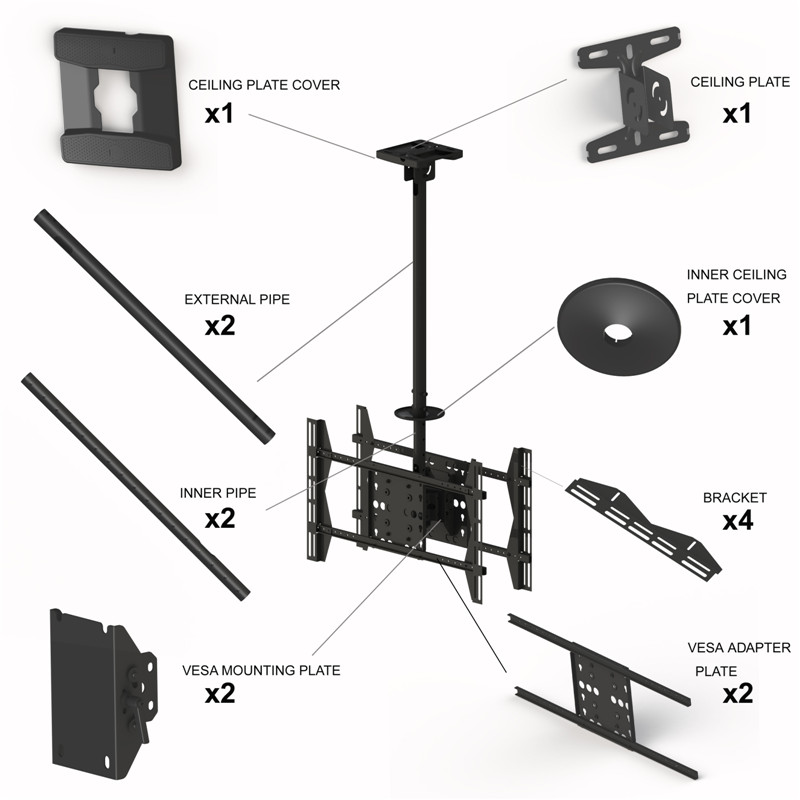

.Complete hardware kit included.
Specification
|
Model |
DD1570 |
|
Support TV Size |
42"-80" |
|
VESA |
from 100x100 to 600x400mm |
|
Tilt |
-5° ~ 15° |
|
Turn |
-30°~ +30° |
|
Max Load Capacity |
80kg(176lbs) |
|
Clockwise rotation |
90° |
|
Material |
Steel Construction |
|
Color |
Black & White |
